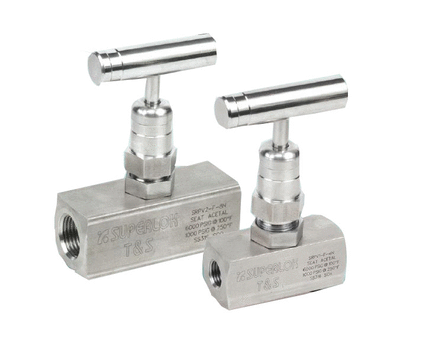

SRPV2-MF-8N-MR
SRPV 1/2 in. Male National Pipe Taper (MNPT) x 1/2 in. Female National Pipe Taper (FNPT), Acetal Seat, National Association of Corrosion Engineers (NACE) Rated, 6000 psi Pressure Rating Inlet Rising Plug Valve
Specifications
| Cv Coefficient | Array |
|---|---|
| End Size | mm |
| End Size 2 | mm |
| End Type | Array |
| End Type 2 | Array |
| Inch/Metric | Inch |
| Orifice | mm |
| Pressure Rating Acetal at -20 to 100 (-28 to 37 ?C) Temperature | 413bar, 6000psig |
| Pressure Rating Acetal at 200 (93 ?C) Temperature | 182bar, 2650psig |
| Pressure Rating Acetal at 250 (121 ?C) Temperature | 68.9bar, 1000psig |
| Pressure [Max] | 413bar, 6000psig |
| Temperature Rating for Flurocarbon | ?C, ?F |
Dimensions
| Dimension A | mm |
|---|---|
| Dimension B | mm |
| Dimension B1 | mm |
| Dimension C | mm |
| Dimension D | mm |
| Dimension E | mm |
Description
(SRPV2-MF-8N-MR)
SRPV 1/2 in. Male National Pipe Taper (MNPT) x 1/2 in. Female National Pipe Taper (FNPT), Acetal Seat, National Association of Corrosion Engineers (NACE) Rated, 6000 psi Pressure Rating Inlet Rising Plug Valve
Non-rotating stem tip Straight-through orifice for maximum flow Stem dust seal protects threads from external contamination Replaceable seals, seat and stem tip Panel mounting option Gauge port option
