SRU Reducing Unions

Price range: $11.95 through $69.02

See individual part details below

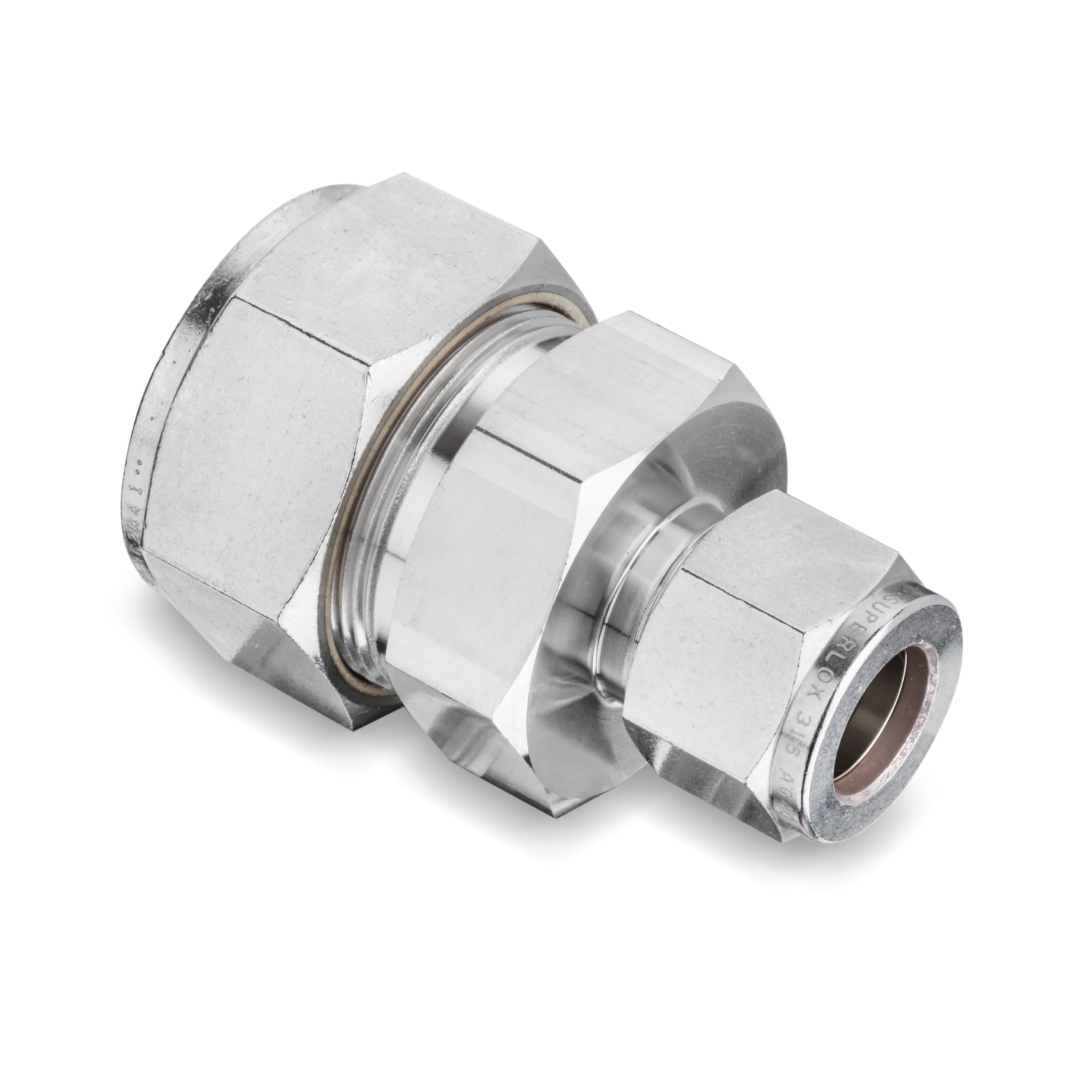

Reducing Union – SRU Reducing Unions

The Reducing Union is a high-performance fitting designed for secure tube-to-tube connections in industrial fluid systems. Made from stainless steel, it ensures durability and leak-proof performance in high-pressure environments. This union facilitates transitions between different tubing sizes while maintaining structural integrity. Widely used in instrumentation, gas distribution, and hydraulic applications, it provides a reliable connection without compromising system efficiency.

Browse all Reducing Unions below to find the perfect component for your fluid system.

Looking for Swagelok? alternatives? Enter a part number in our search to find compatible alternatives or browse below to instantly request quotes or purchase the reducing union you need.

SKU: 17630 Category:
Downloads
Click here for more info
Specifications
Superlok Part Type Union
Available Sizes

SRU 2-1 SRU Reducing Unions

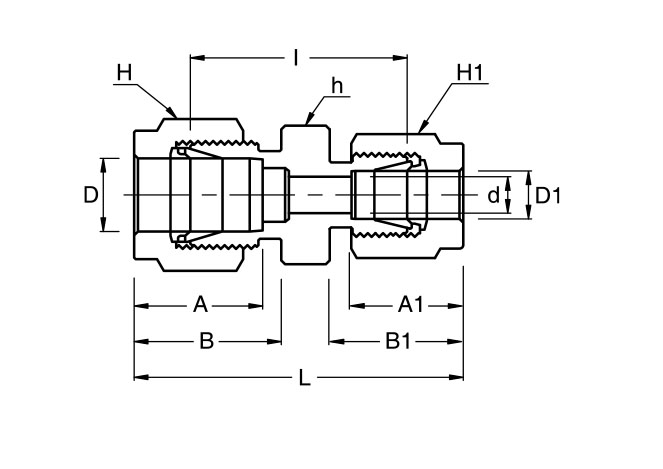

SRU 1/8 in. Tube Outside Diameter D x 1/16 in. Tube Outside Diameter D1 Reducing Union
$14.71

SRU 3-2 SRU Reducing Unions

SRU 3/16 in. Tube Outside Diameter D x 1/8 in. Tube Outside Diameter D1 Reducing Union
$12.47

SRU 4-2 SRU Reducing Unions

SRU 1/4 in. Tube Outside Diameter D x 1/8 in. Tube Outside Diameter D1 Reducing Union
$11.95

SRU 4-3 SRU Reducing Unions

SRU 1/4 in. Tube Outside Diameter D x 3/16 in. Tube Outside Diameter D1 Reducing Union
$13.60

SRU 5-2-TM SRU Reducing Unions

SRU 5/16 in. Tube Outside Diameter D x 1/8 in. Tube Outside Diameter D1 Reducing Union with Bored Through
$15.37

SRU 5-4 SRU Reducing Unions

SRU 5/16 in. Tube Outside Diameter D x 1/4 in. Tube Outside Diameter D1 Reducing Union
$13.11

SRU 6-2 SRU Reducing Unions

SRU 3/8 in. Tube Outside Diameter D x 1/8 in. Tube Outside Diameter D1 Reducing Union
$16.82

SRU 6-4 SRU Reducing Unions

SRU 3/8 in. Tube Outside Diameter D x 1/4 in. Tube Outside Diameter D1 Reducing Union
$15.37

SRU 6-5 SRU Reducing Unions

SRU 3/8 in. Tube Outside Diameter D x 5/16 in. Tube Outside Diameter D1 Reducing Union
$15.37

SRU 8-2 SRU Reducing Unions

SRU 1/2 in. Tube Outside Diameter D x 1/8 in. Tube Outside Diameter D1 Reducing Union
$29.53

SRU 8-4 SRU Reducing Unions

SRU 1/2 in. Tube Outside Diameter D x 1/4 in. Tube Outside Diameter D1 Reducing Union
$23.62

SRU 8-4-TM SRU Reducing Unions

SRU 1/2 in. Tube Outside Diameter D x 1/4 in. Tube Outside Diameter D1 Reducing Union with Bored Through
$27.23

SRU 8-6 SRU Reducing Unions

SRU 1/2 in. Tube Outside Diameter D x 3/8 in. Tube Outside Diameter D1 Reducing Union
$23.62

SRU 8M-6M SRU Reducing Unions

SRU 8 mm Tube Outside Diameter D x 6 mm Tube Outside Diameter D1 Reducing Union
$13.88

SRU 10-6 SRU Reducing Unions

SRU 5/8 in. Tube Outside Diameter D x 3/8 in. Tube Outside Diameter D1 Reducing Union
$34.58

SRU 10-8 SRU Reducing Unions

SRU 5/8 in. Tube Outside Diameter D x 1/2 in. Tube Outside Diameter D1 Reducing Union
$30.96

SRU 12-4 SRU Reducing Unions

SRU 3/4 in. Tube Outside Diameter D x 1/4 in. Tube Outside Diameter D1 Reducing Union
$41.55

SRU 12-6 SRU Reducing Unions

SRU 3/4 in. Tube Outside Diameter D x 3/8 in. Tube Outside Diameter D1 Reducing Union
$41.55

SRU 12-8 SRU Reducing Unions

SRU 3/4 in. Tube Outside Diameter D x 1/2 in. Tube Outside Diameter D1 Reducing Union
$36.09

SRU 12-10 SRU Reducing Unions

SRU 3/4 in. Tube Outside Diameter D x 5/8 in. Tube Outside Diameter D1 Reducing Union
$42.89

SRU 16-8 SRU Reducing Unions

SRU 1 in. Tube Outside Diameter D x 1/2 in. Tube Outside Diameter D1 Reducing Union
$69.02

SRU 16-12 SRU Reducing Unions

SRU 1in. Tube Outside Diameter D x 3/4 in. Tube Outside Diameter D1 Reducing Union
$69.02
