SSWE-4
$12.84

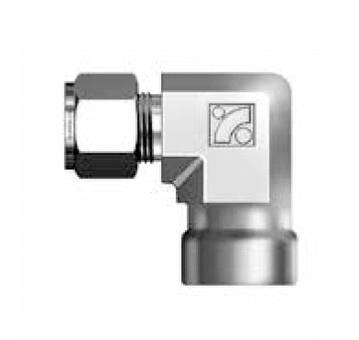

SSWE 1/4 in. Tube Outside Diameter D x 1/4 in. Tube Socket Weld 90 Degree Elbow
Specifications
| Angle | 90? |
|---|---|
| Inch/Metric | Inch |
| Tube Outside Diameter D | 1/4in |
| Width Across Flats h | 5/8in |
Dimensions
| Dimension A | 15.24mm |
|---|---|
| Dimension B | 17.78mm |
| Dimension I | 19.55mm |
| Dimension I1 | 7.87mm |
| Dimension L | 26.92mm |
| Dimension L1 | 19.55mm |
| Dimension P | 12.70mm |
| Dimension d [Min] | 4.82mm |
Description
(SSWE-4)
SSWE 1/4 in. Tube Outside Diameter D x 1/4 in. Tube Socket Weld 90 Degree Elbow
