SU-16
SU-16 - Image 2
SU-16 - Image 3

SU-16

$61.21

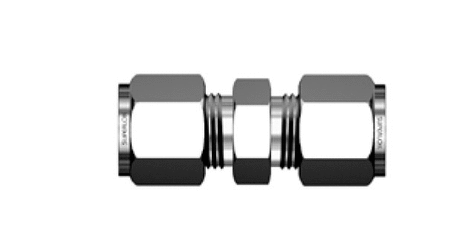

SU 1 in. Tube Outside Diameter D Union

SKU: SU-16 Category:
Downloads
Click here for more info
Specifications
Inch/Metric Inch
Tube Outside Diameter D 1in, mm
Width Across Flats h 1-3/8in
Dimensions
SU-16
Dimension A 31.24mm
Dimension B 26.41mm
Dimension I 40.38mm
Dimension L 64.77mm
Dimension d [Min] 22.35mm
Description

(SU-16)

SU 1 in. Tube Outside Diameter D Union
